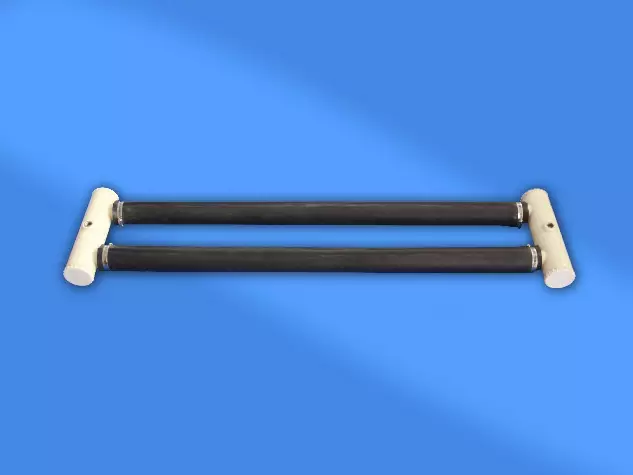

Two-Tube Suspended Chain Aerator
The suspended chain aerator is a new type of oxygen-enhancing aerator developed by our company after years of effort, drawing on the advantages of various similar products from abroad. It is a core piece of equipment in the improved A/O process (activated sludge biological treatment process) for wastewater treatment. It effectively acts on all parts of the aeration tank, providing uniform oxygen supply with low energy consumption.
The suspended chain aerator consists of three parts: the aerator, the suspended chain, and the surface oxygen delivery pipes.
Aeration membrane: made of silicone rubber or composite materials;
Suspension chain: made of high-strength polyvinyl chloride pipe;
Floating pipe: made of UV-resistant, hard-walled, flexible HDPE plastic pipe.
Product Descriptions
Performance Advantages
1.Long aerator diaphragm lifespan, reaching 5-8 years, overcoming the shortcomings of traditional diaphragms such as easy tearing and short lifespan;
2.Strong impact resistance, not easily damaged;
3.Internal check valve, solving backflow problem;
4.Float tube is integrally welded using UV-resistant material, solving air leakage problem and extending service life;
5.All made of corrosion-resistant materials.
Technical parameters and selection table
| Project | Unit | Parameters |
| Effective service area (dual-tube) | m2/set | 5~10 |
| Membrane thickness | mm | 1.7~2 |
| Airflow rate (dual-tube) | m3/set | 10~20 |
| Tear resistance (right-angle type) | KN/m | 60~68 |
| Drag loss | Pa | 2000~3000 |
| Pore length | mm | 0.8~2 |
| Membrane diameter | mm | 65~69 |
| Oxygenation effect | Ppm(Clear water) | >6 |
| Pressure resistance | Kg/cm2 | >3 |
| Theoretical power efficiency | KgO2/Kw.h | 6.5 |
| Oxygenation capacity | Kg/h.strip | >89% |
| Oxygen utilization rate | % | >35 |
| Number of micropores (dual-tube) | Each/set | 28000 |
